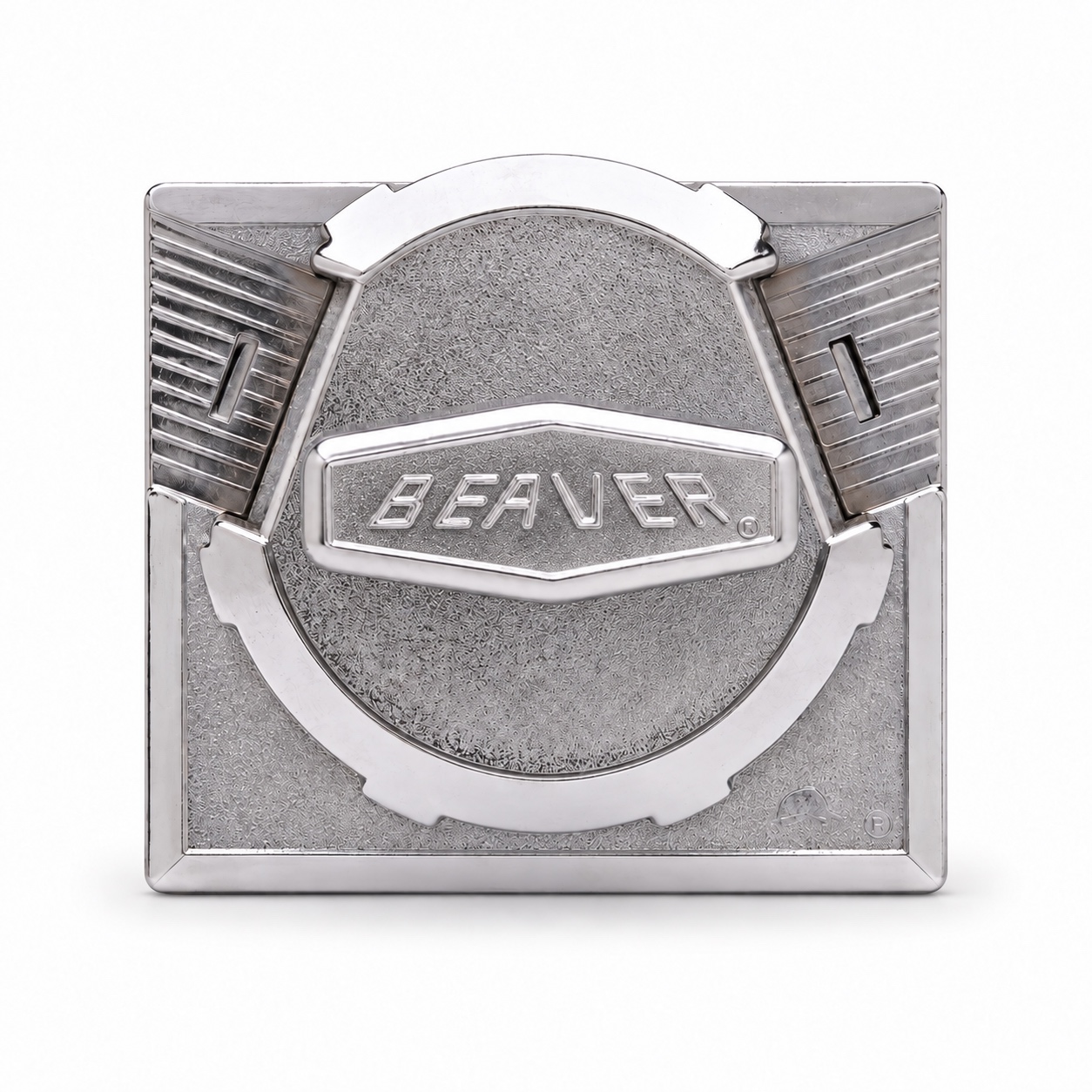

Beaver New Generation 4 × 25¢ Coin Mechanism – U.S. & Canadian Quarter Setting

Beaver 4 × 25¢ Coin Mechanism is a New Generation rotary coin mechanism configured to accept four U.S. or Canadian quarters per vend.

The mechanism checks each coin’s diameter and thickness before allowing the handle to complete the vending cycle. Its clutch-style handle is designed to help protect against forced turning and improper use.

Coins and tokens that do not match the configured size may pass through to the cash box instead of activating the vending cycle.

Product details:
Coin setting: Four U.S. or Canadian quarters
Value per vend: $1.00
Manufacturer part number: 10510507
Product includes: One Beaver coin mechanism

Please confirm mounting dimensions, drive configuration, and compatibility with your vending machine before ordering.

Choosing the drive gear

• 9-tooth Gear — for smaller vending machines, commonly used for gumballs, candy, and small items.
• 12-tooth Gear — for larger vending machines, commonly used for capsules and larger items, including 2-inch capsules.

Match the gear to your machine’s drive system. Check the tooth count on your existing mechanism before ordering; product size alone does not determine compatibility.

Watch before ordering: choose the right gear
